Devil '45 Express

Specifications

LOA (Length Overall)
44' 5"
Beam
15' 3.5"
Draft
4.0'
Fuel Capacity
750 gal
Water Capacity
135 gal
Displacement (Wet)
35,000 lb

The Devil 45' is available in a Flybridge, Hardtop express and traditional express models.

Standard Equipment

Construction

  • Anchor, anchor chain (8 ft.) anchor line (300 ft.)
  • Anti-fouling bottom paint
  • Awlgrip engine room
  • Custom aluminum engine room deck
  • Molded hand-laid fiberglass construction with
  • premium quality resin and bi-axial fabrics, vinyl ester skin coats and white gelcoat finish.
  • Lamination below waterline is solid fiberglass

Mechanical

  • Acoustical and thermal insulation
  • Air Conditioning– Reverse cycle
  • Auto/Manual fire extinguishing system
  • Bilge pumps w/ high water alarm (3)
  • Custom engineered motor mounts
  • Custom linear mufflers
  • Engine/bilge blowers (2)
  • Diesel Engines (fresh water cooled)
  • Dockside water with pressure valve
  • Dripless shaft logs
  • Electronic shift and throttle controls
  • Engine synchronizer
  • External sea water strainers
  • Freshwater spigot in engine room
  • Fuel lines– Flexible aircraft type
  • Fuel tanks–Welded aluminum
  • Fuel filters– Engines and generator
  • Generator—11KW (fresh water cooled)
  • Hydraulic steering
  • Oil change system– Engines, gen & trans
  • Propellers– High performance
  • Propellers shafts, aquamet
  • Rudders
  • Seacocks on all underwater thru hull fittings
  • Struts
  • Trim tabs (recessed)
  • Water heater
  • Water system, Heavy duty, pressurized

Electrical

  • Anchor/mast light
  • Batteries– Heavy duty w/ fiberglass box (3)
  • Battery charger
  • Battery disconnect switches
  • Battery paralleling
  • Color coded harnessed wiring system

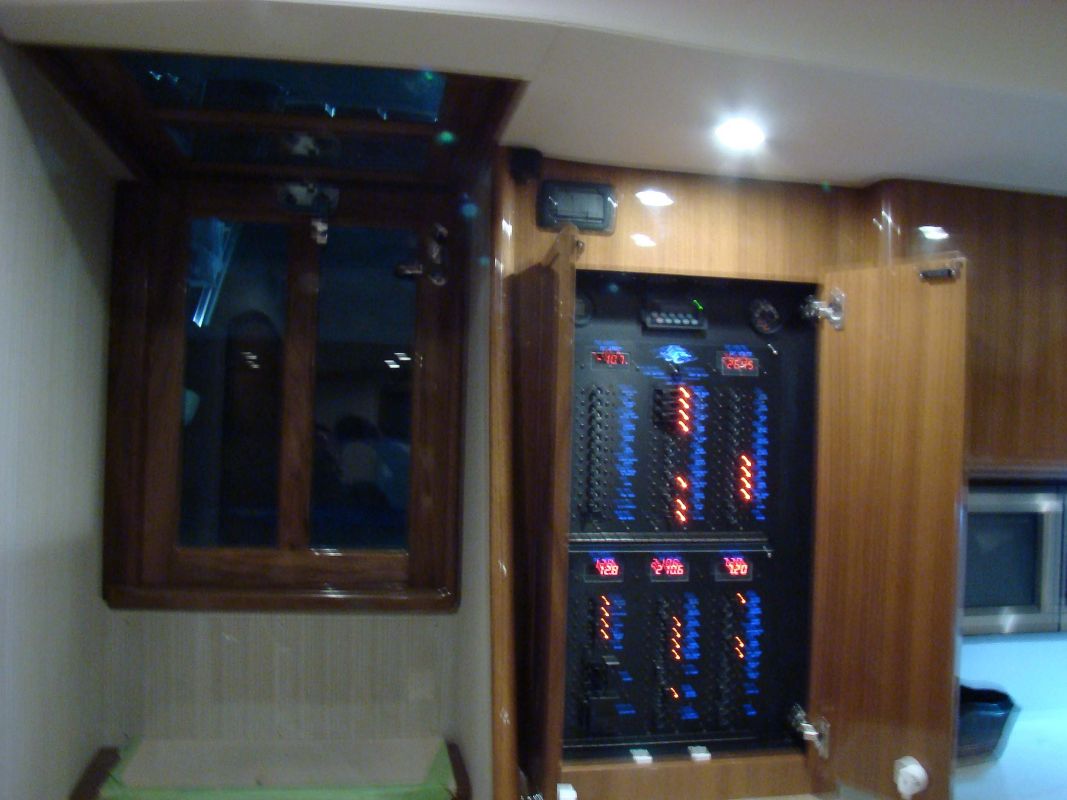

  • Custom split AC/DC electric panel with
  • breakers and back lighting
  • Diesel generator
  • Dyno-plate, grounding
  • Engine room lighting (DC and 120VAC)
  • Horns– dual
  • Internal bonding system
  • Shore power with 50’ cord
  • Transom, shaft and rudder zincs

Cockpit

  • Cockpit indirect lighting
  • Custom forward deck sealed anchor locker
  • Custom sliding entry door
  • Dockside TV and phone connections
  • Dockside water and electrical connections
  • Integral aluminum plate for mounting of fighting chair
  • Engine room access
  • Fish box insulated with macerator
  • In-deck fish box with macerator pump
  • Live Baitwell with re-circulation pump
  • Rod holders (4), flush mount
  • Wash downs, salt and freshwater

Bridge / Helm Deck

  • Adjustable helm chair
  • Compass
  • Custom teak helm pod
  • Full instrumentation, engine
  • manufacturer supplies
  • Halon fire extinguishing system
  • Hydraulic opening bridge deck for engine
  • room access
  • Hydraulic steering system with tournament
  • style stainless steering wheel
  • Lighting, courtesy and overhead
  • Lounge seats with storage
  • Tackle storage lockers

Head

  • Designer counter tops, sinks, and faucets
  • Duplex outlets (120VAC—GFI) Electric heads
  • Enclosed showers with automatic sump pumps
  • Exhaust fans
  • Lighting
  • Linen Storage
  • Medicine cabinet with mirror

Devil '45 Options

Engines

  • Cummins QSM 11 (715 hp) – standard power
  • MAN (800 hp)
  • MAN (900 hp)
  • YANMAR (715 hp)
  • YANMAR (900 hp)

Options

  • Anchor chain fresh water wash down
  • Bait well equipped as second freezer
  • Bridge deck air conditioning
  • Cockpit speakers
  • Companion helm chair, teak
  • Custom cabin side hand rails
  • Custom hull color
  • Custom pod gauge package
  • Electric reel outlet in cockpit (2)
  • Glendinning back up control unit
  • Padded coaming
  • Power assisted steering
  • Pulpit with stainless steel anchor chute and roller
  • Teak bridge deck
  • Teak cockpit
  • Teak covering boards
  • Teak pulpit to match toe rail
  • Teak toe rail
  • Trolling Valves
  • Rod holders in cover boards (4)

Tournament Package

Tuna Tower: includes polished aluminum pipe with hard top, molded standing platform with radar box, tower sunshade, control box, glendinning controls and steering, outriggers and center rigger, 6 rod holders on hard top and 4 on tower legs. Costa® custom enclosure and tackle storage drawers and Release® teak helm chair with 4” stainless no-bolt pedestal, no-rock slide, custom tapered cushions and cover

Due to our continual effort to improve our product, Jersey Cape reserves the right to change standard or optional equipment and pricing at anytime with out notice. Some features and items shown in photographs and illustrations are optional. Speeds, weights and measures may vary with conditions and options.
