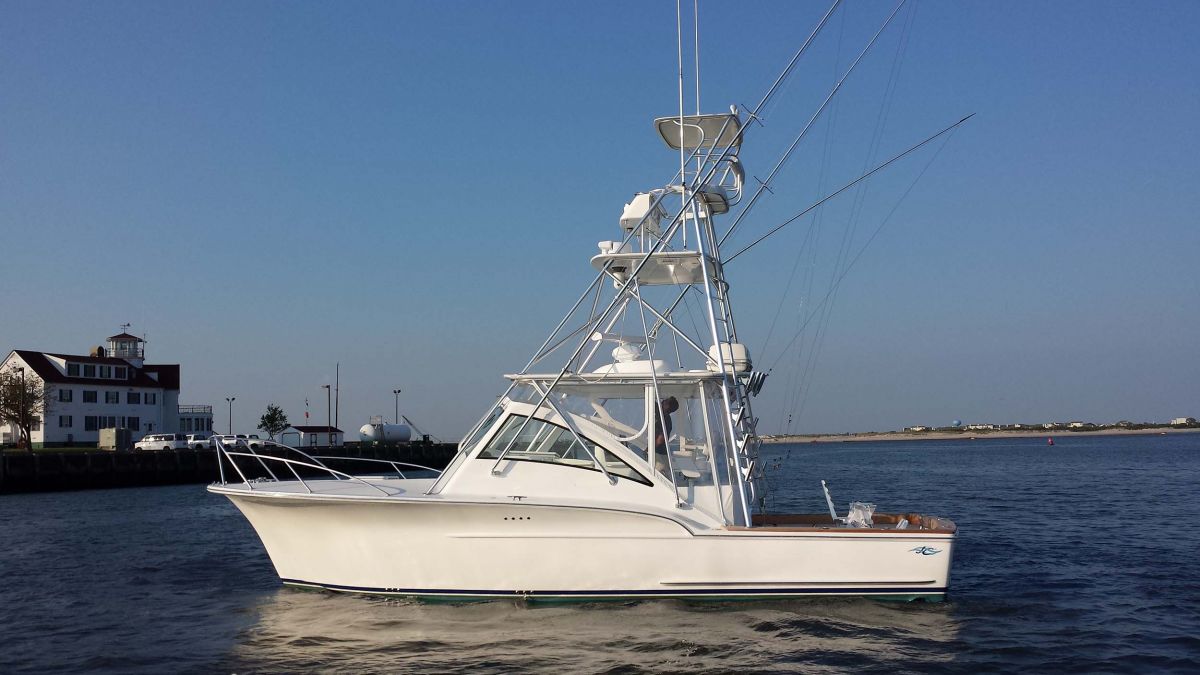

Devil 36'

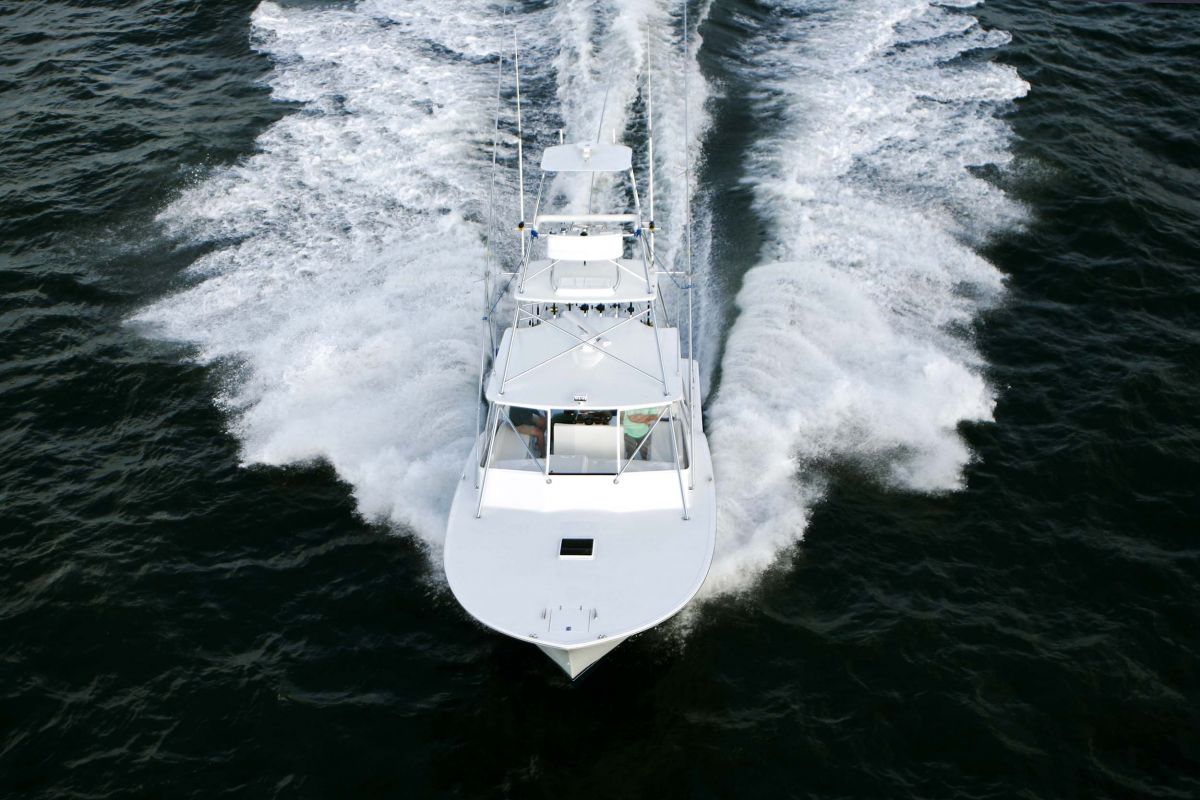

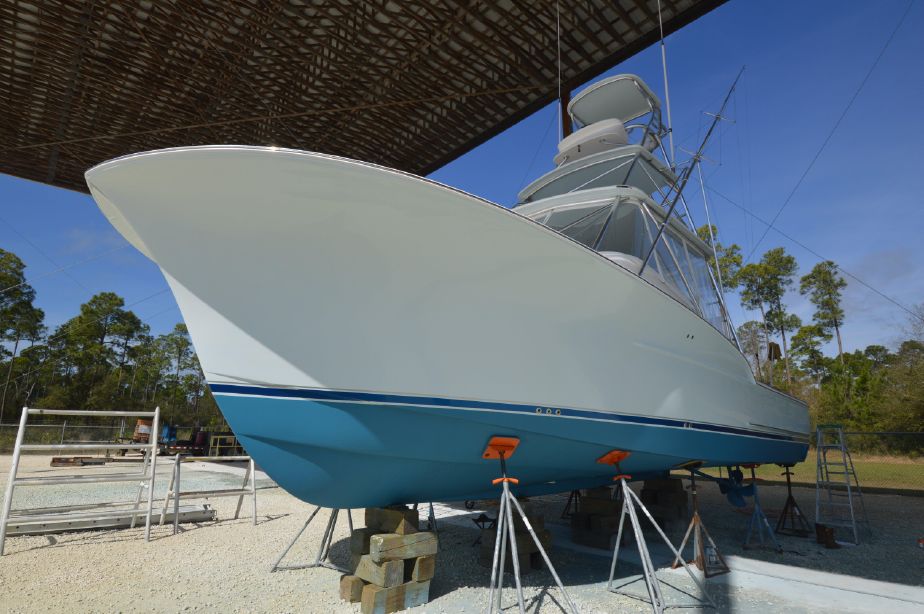

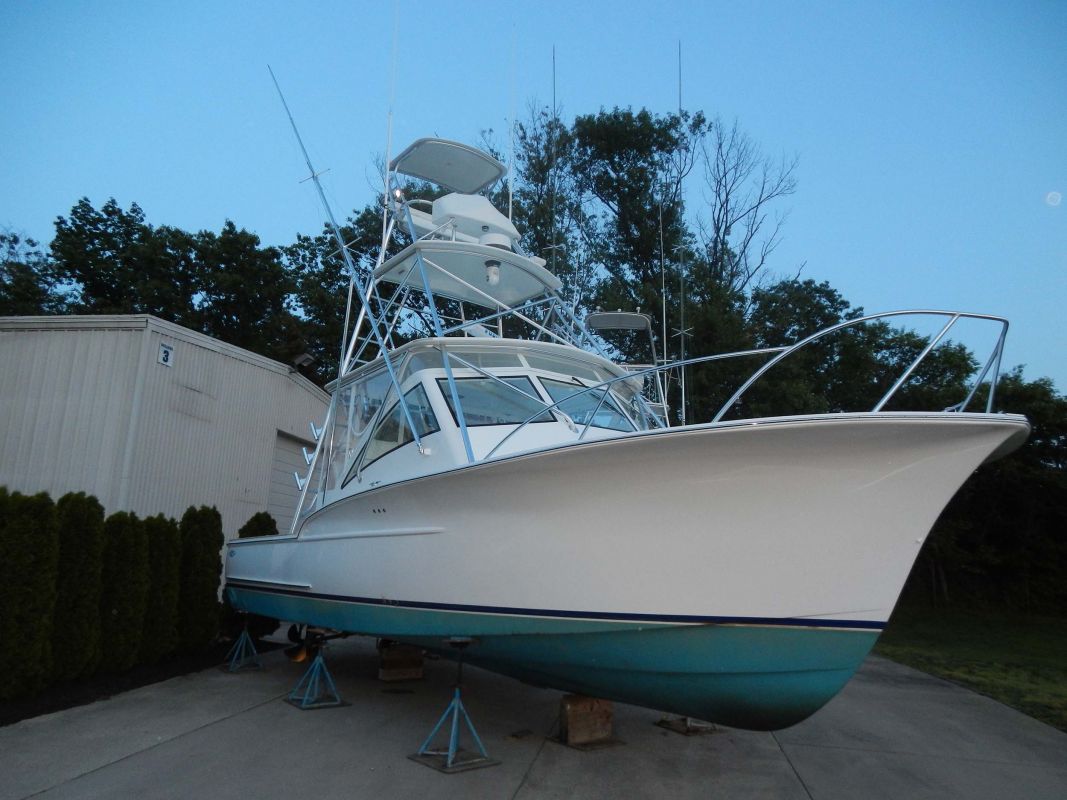

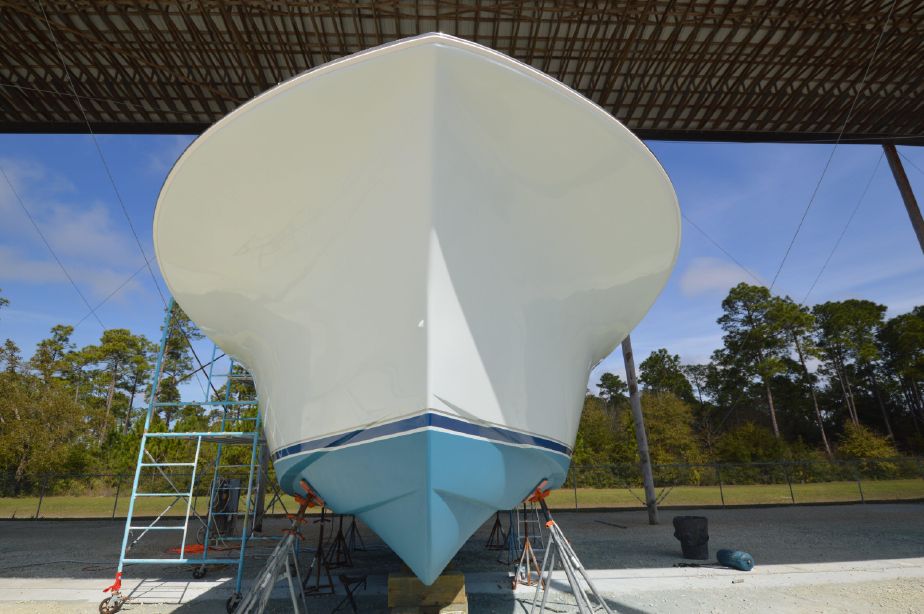

The Devil 36’ is the flagship of the Jersey Cape line. A striking bow flair and sharp 60° entry slice through the roughest of conditions. The 14’ 7” beam and true Carolina style hull bottom transform this sexy eye catcher into a true work-horse. A fish raiser and proven tournament winner with a 98.6 sq. ft. cockpit and over 200 gallons of fish box space. The spacious center-line raised helm allows an un-obstructed view. Step below deck to find creature com-forts that rival sport fish twice her size.

Specifications

LOA (Length Overall)
36' 7"
Beam
14' 7"
Draft
3' 5"
Fuel Capacity
450 gal
Water Capacity
90 gal
Displacement (Wet)
24000 lb
Cockpit (Total Area)
98.6 sq ft

Standard Equipment

Hull Construction

Molded hand-laid fiberglass construction with premium quality resin and bi-axial fabrics, vinyl ester skin coats and white gelcoat finish

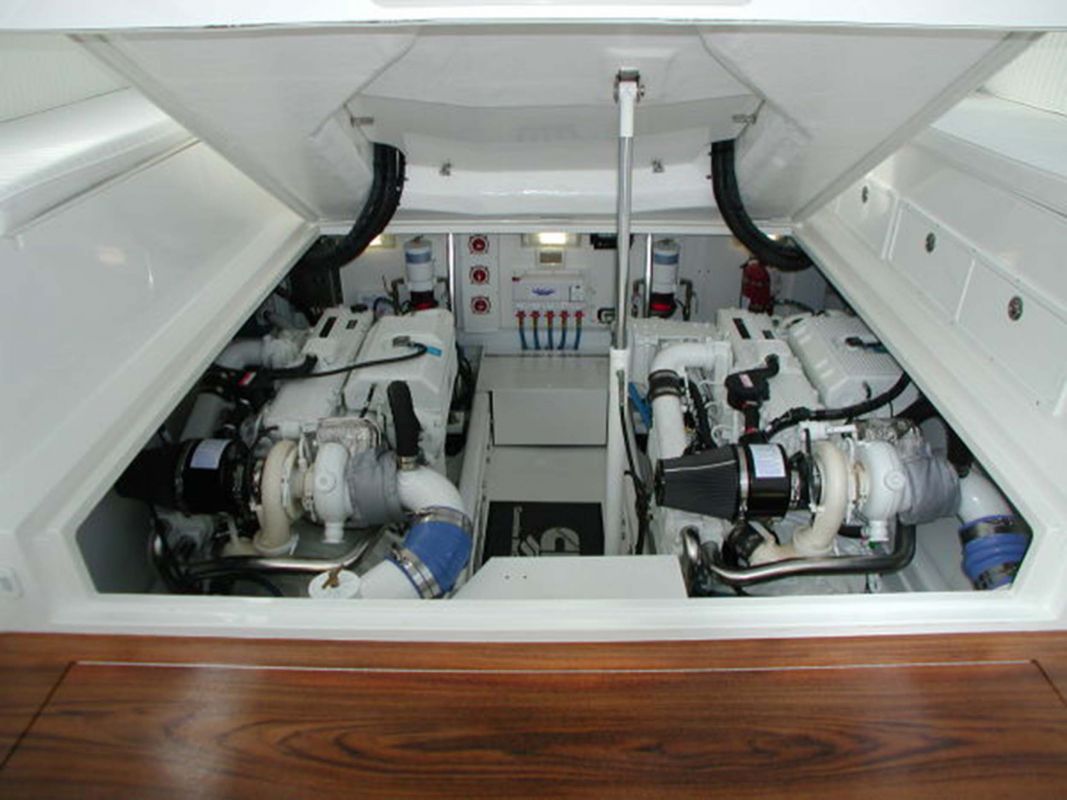

Mechanical / Engine Room

  • Custom engineered motor mounts with full backing plates
  • Aquamet propeller shafts, 2"
  • Automatic/manual bilge pumps (3) w/ high water alarms
  • Bilge blowers
  • Drip-less stuffing boxes
  • Flexible fuel lines w/ cross-over-shutoffs
  • Hot water heater
  • Hydraulic steering
  • Oil change system
  • Racor® fuel filters, mains and generator
  • Seacocks on all underwater thru hull fittings
  • AC and DC engine room lighting
  • Custom Aluminum engine room deck
  • Premium sound absorbing insulation
  • Custom linear mufflers

Electrical

  • Shore power cord, 50'
  • Air conditioning, reverse cycle
  • Batteries (3)
  • Battery charger
  • Custom split electric panel w/ breakers and back lighting
  • Generator, 5KW
  • Internal bonding system and dyna-plate
  • Transom, shaft & rudder zincs

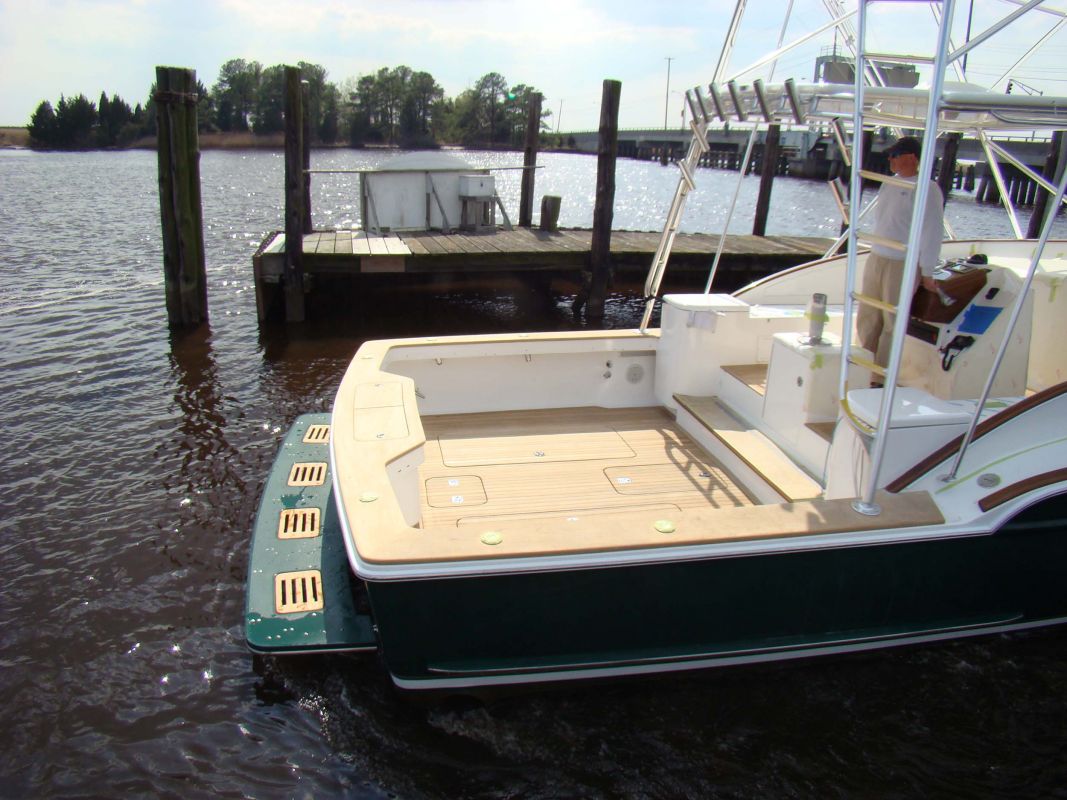

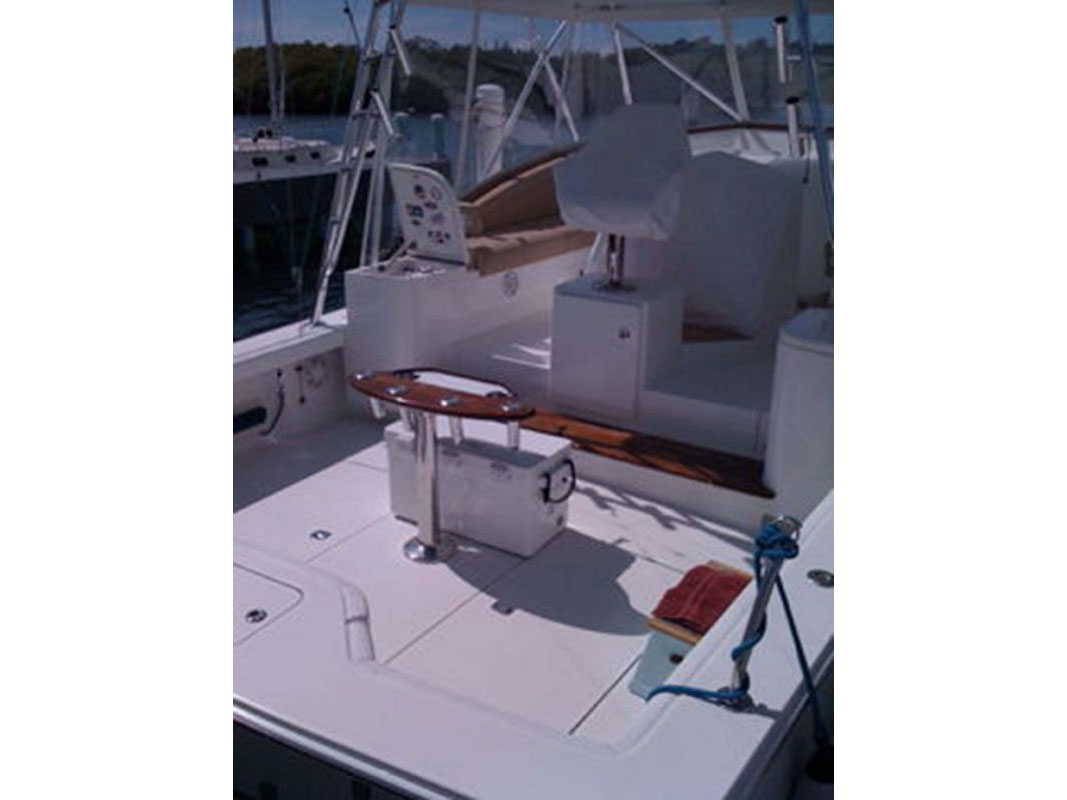

Cockpit / Deck

  • Bench seat reversible back rests
  • Center in-deck fish box with macerator pump
  • Cockpit & bridge deck courtesy lighting
  • Custom forward deck sealed anchor locker
  • Custom sliding entry door
  • Forward, mid and aft mooring cleats
  • Fresh and saltwater wash downs
  • Integral aluminum plate for cockpit fighting chair installation
  • Molded fiberglass sink/bait prep center
  • Removable port and starboard in-deck fish boxes with individual macerator pumps and custom direct overboard drain system
  • Rod holders, four

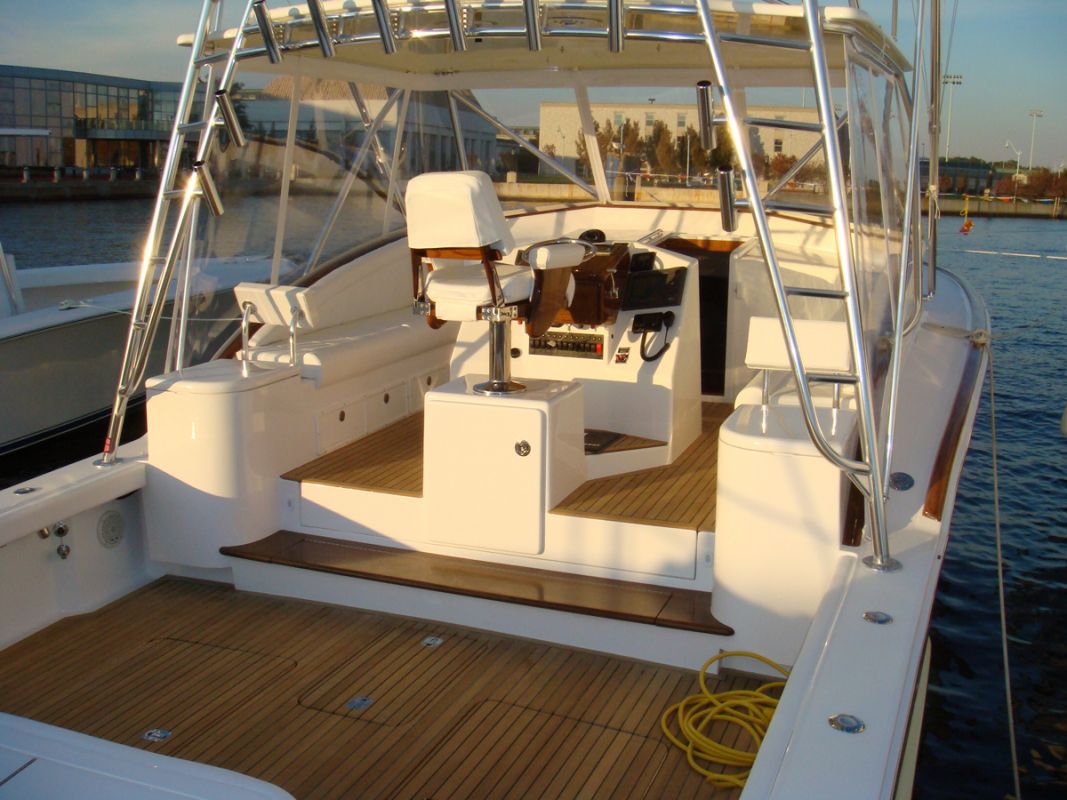

Bridge / Deck / Helm / Tower

  • Adjustable helm chair
  • Compass
  • Full engine instrumentation (engine supplied)
  • Halon extinguishing system
  • Hydraulic opening bridge deck/engine room

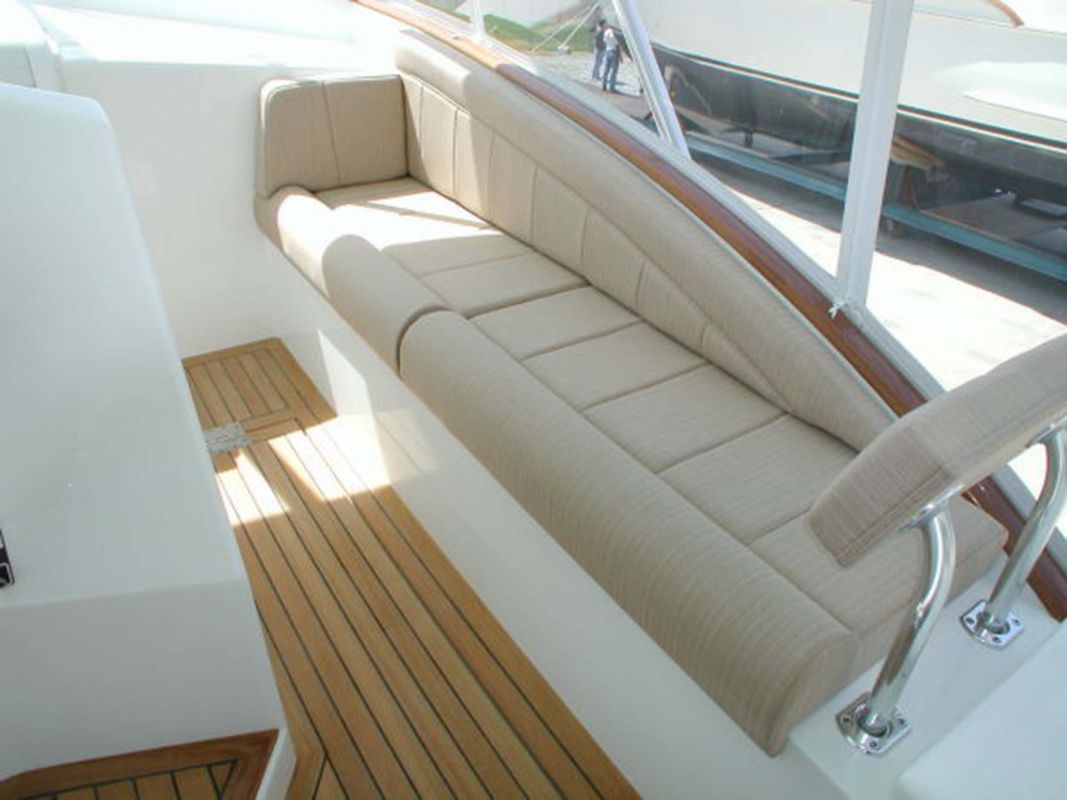

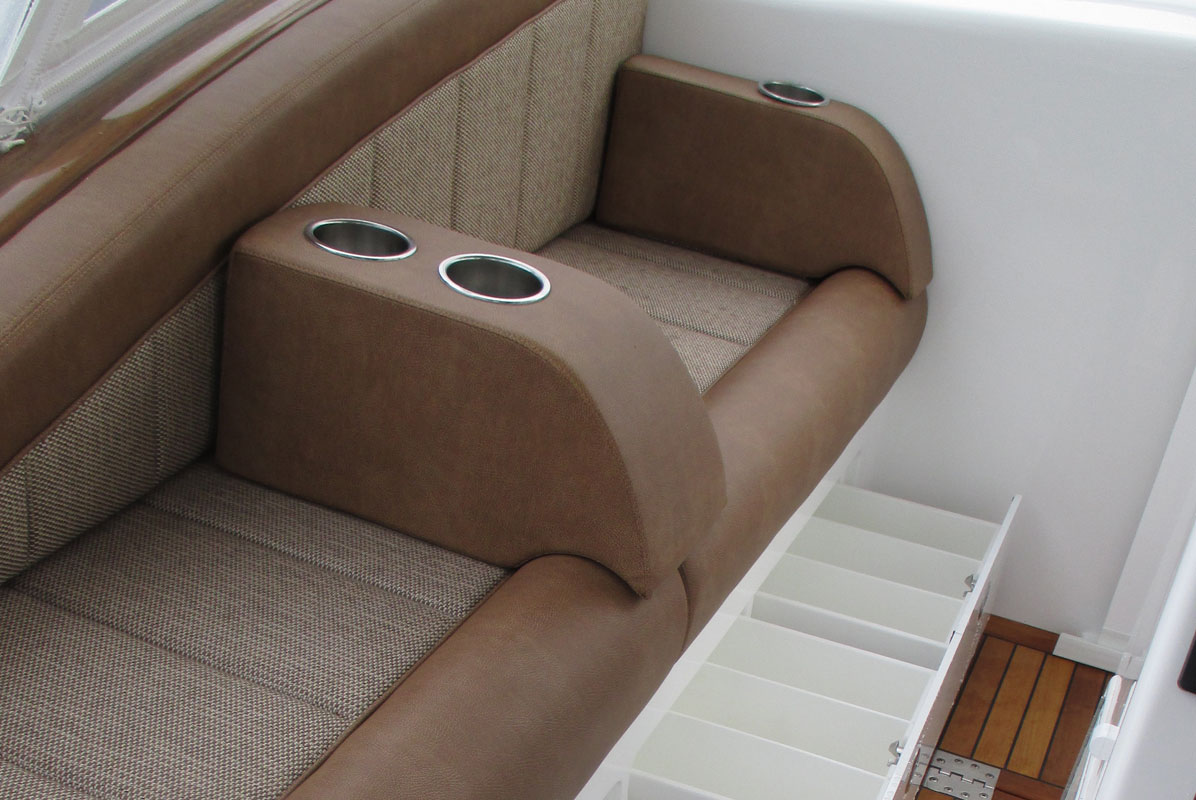

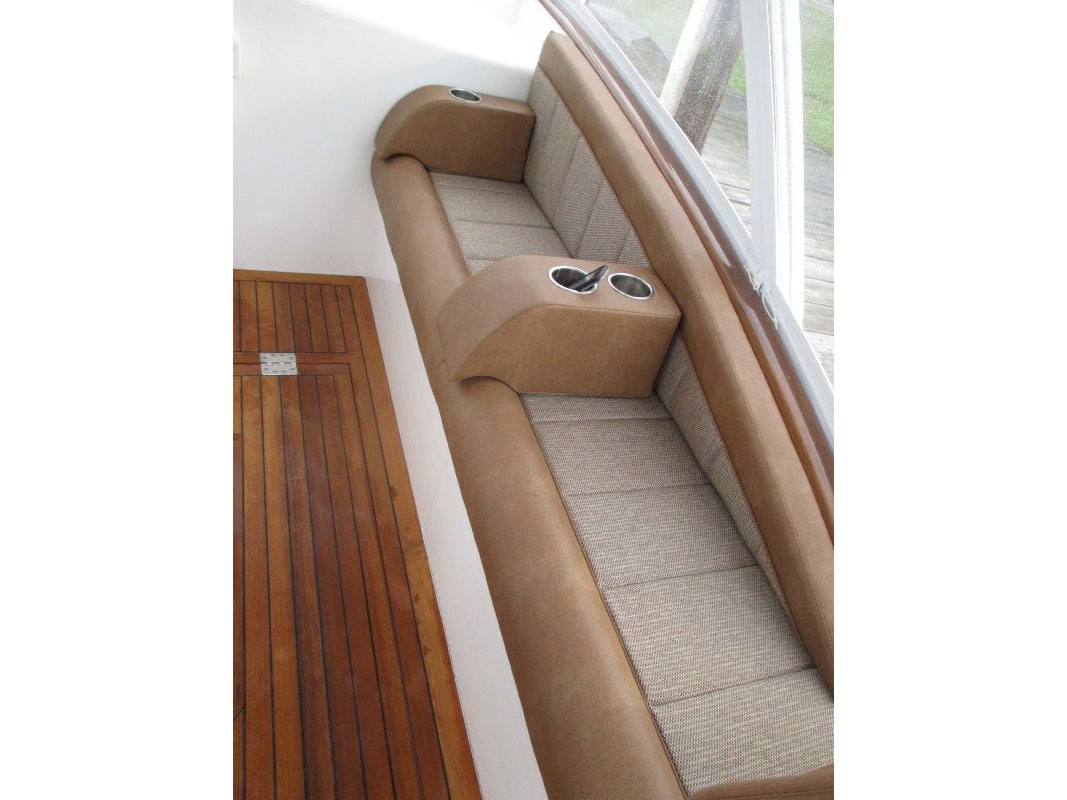

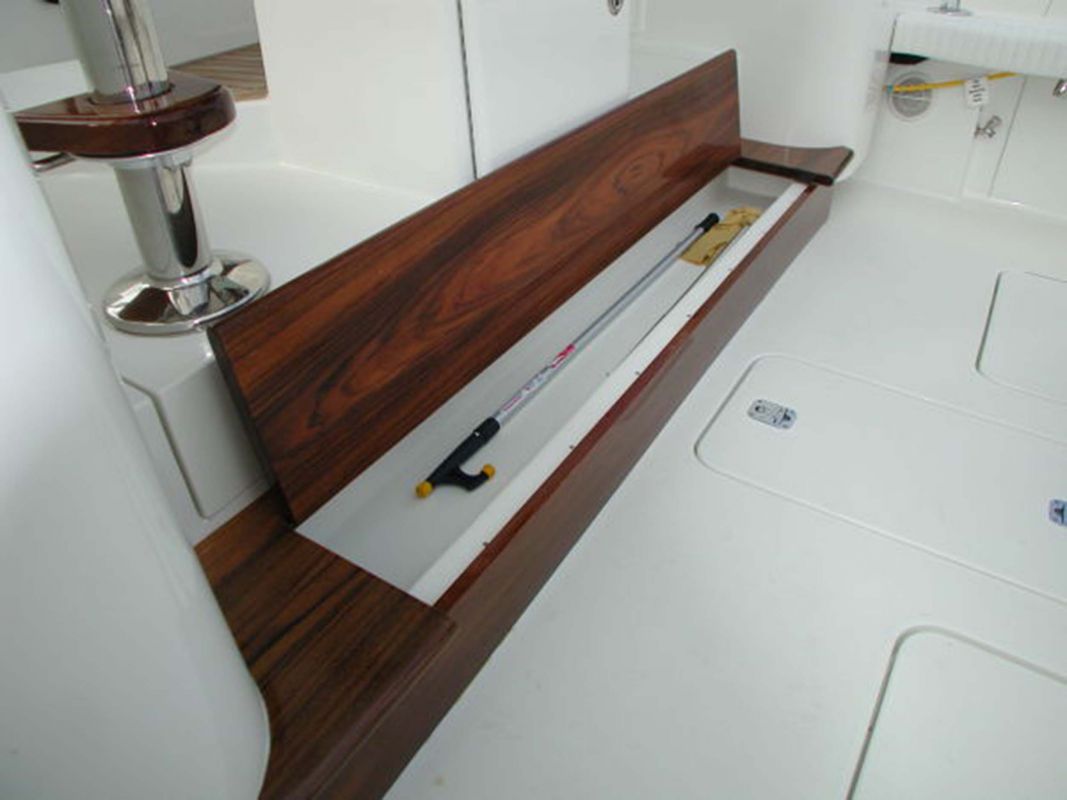

  • Port and Starboard bench seating/lockable gear and rod storage
  • Single lever electronic controls

Cockpit / Deck

  • Bench seat reversible back rests
  • Center in-deck fish box with macerator pump
  • Cockpit & bridge deck courtesy lighting
  • Custom forward deck sealed anchor locker
  • Custom sliding entry door
  • Forward, mid and aft mooring cleats
  • Fresh and saltwater wash downs
  • Integral aluminum plate for cockpit fighting chair installation
  • Molded fiberglass sink/bait prep center
  • Removable port and starboard in-deck fish boxes with individual macerator pumps and custom direct overboard drain system
  • Rod holders, four

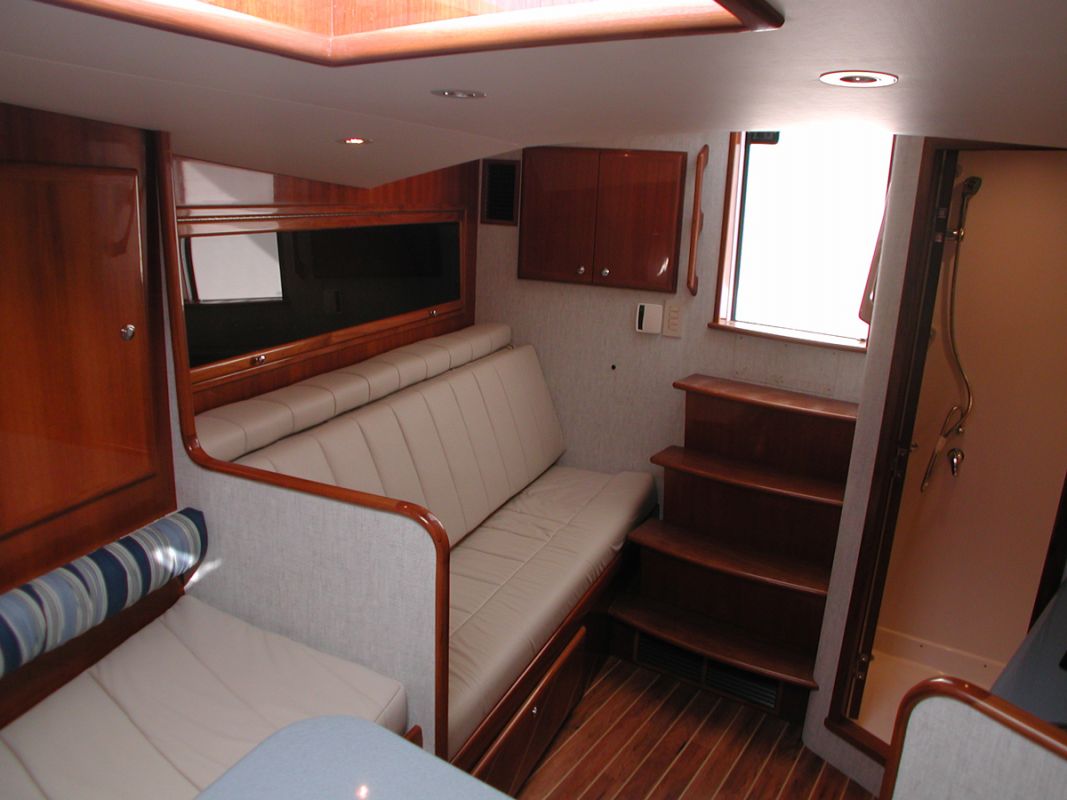

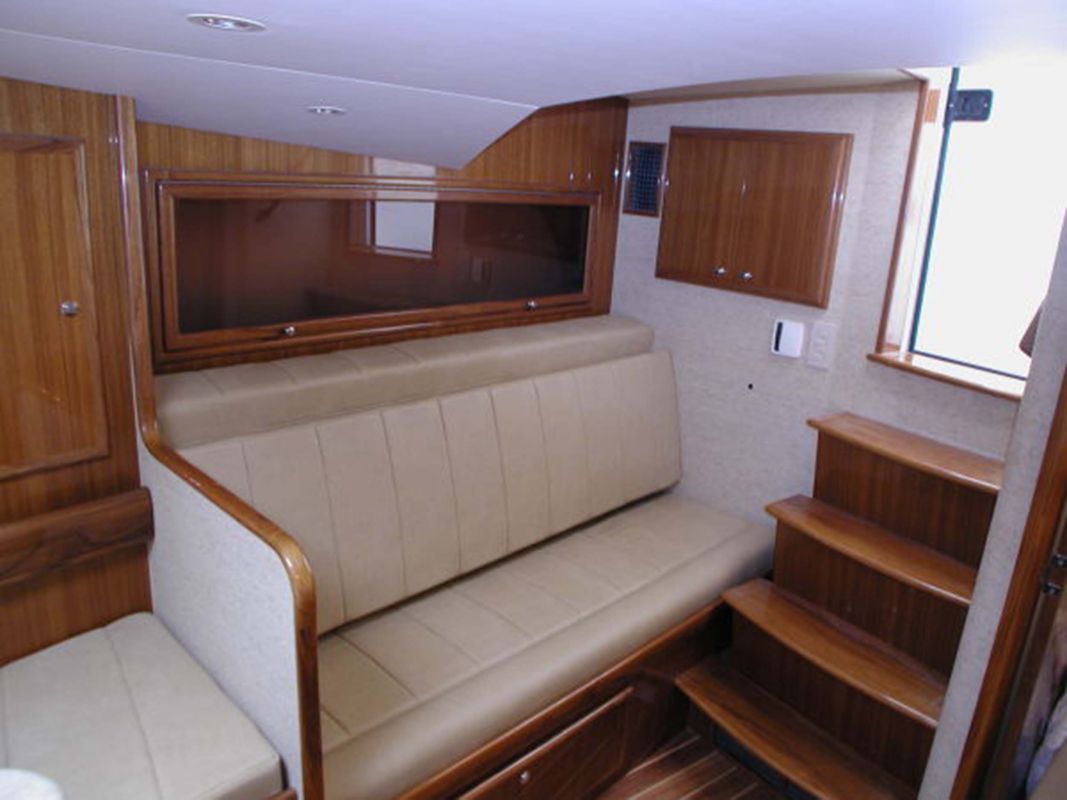

Salon / Galley / Dinette

  • AM/FM Stereo/CD player
  • Custom wood cabinetry

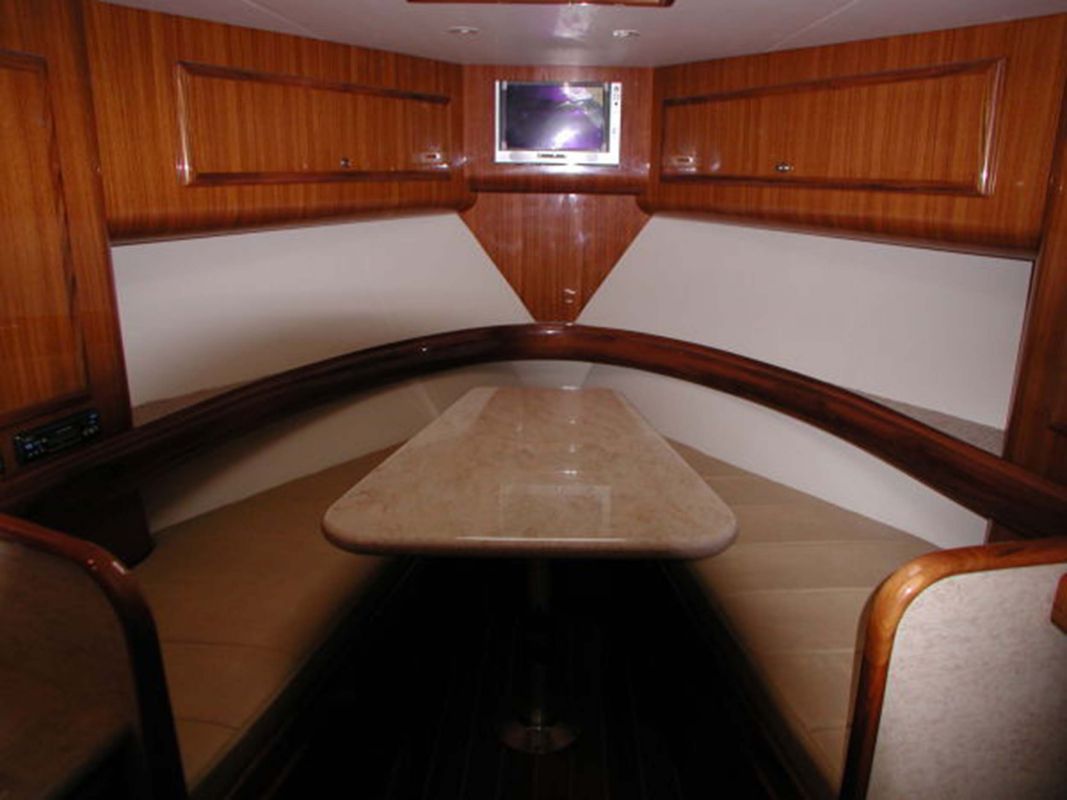

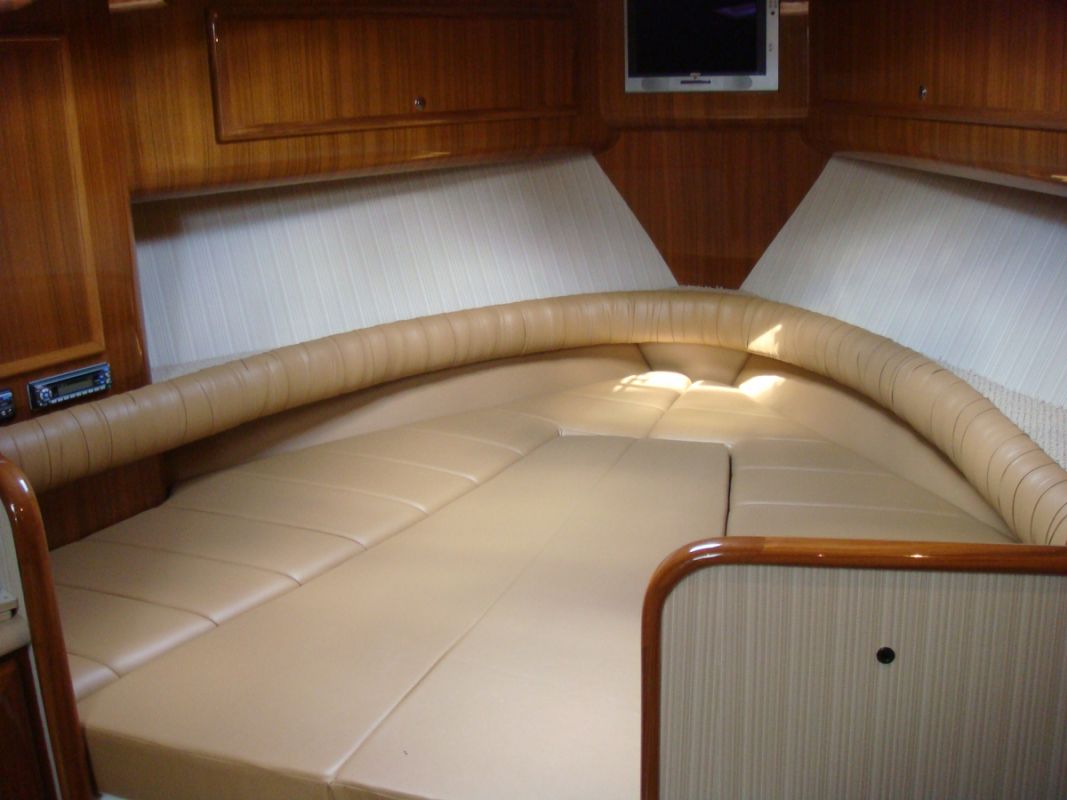

  • Dinette area w/ converting Corian® hi-lo table to forward berth
  • Flat screen TV monitor & DVD system
  • Hanging lockers
  • Corian galley counters w/ ceramic cooktop
  • Refrigerator/freezer

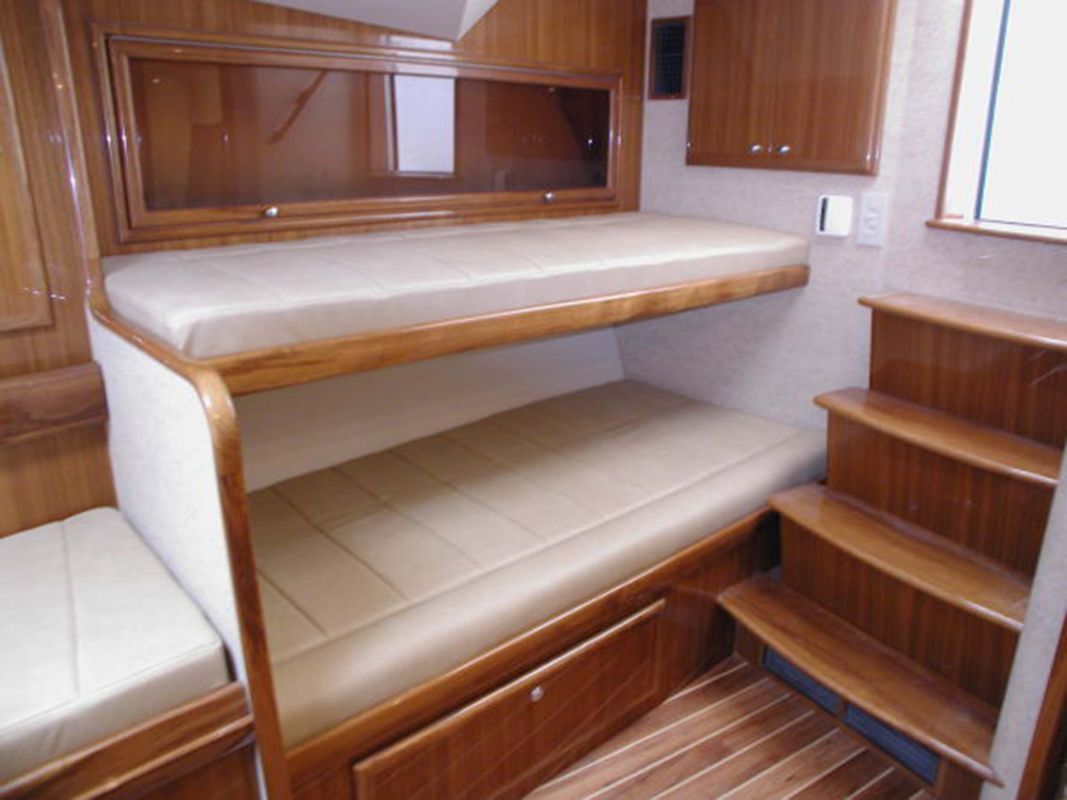

  • Starboard side settee converting to upper/ lower berths

Head

  • Corian vanity with storage cabinet
  • Mirrored medicine cabinet and storage locker
  • Shower w/automatic sump
  • Exhaust with electric fan

Devil 36' Options

Engines

  • Cummins QSB (480 hp) standard
  • Cummins QSB 6.7 (550hp)
  • Cummins QSC (500 hp)
  • Cummins QSC (540 hp)
  • Cummins QSC (600 hp)

Optional Equipment

  • Bait freezer, cockpit
  • Custom hull color
  • Electric reel outlet in cockpit
  • Helm deck air conditioning
  • Lectra San Unit (required with refrigeration)
  • Refrigerated/freezer in-deck center fish box
  • Teak/Holly engine room
  • Teak helm step pad
  • Teak helm deck

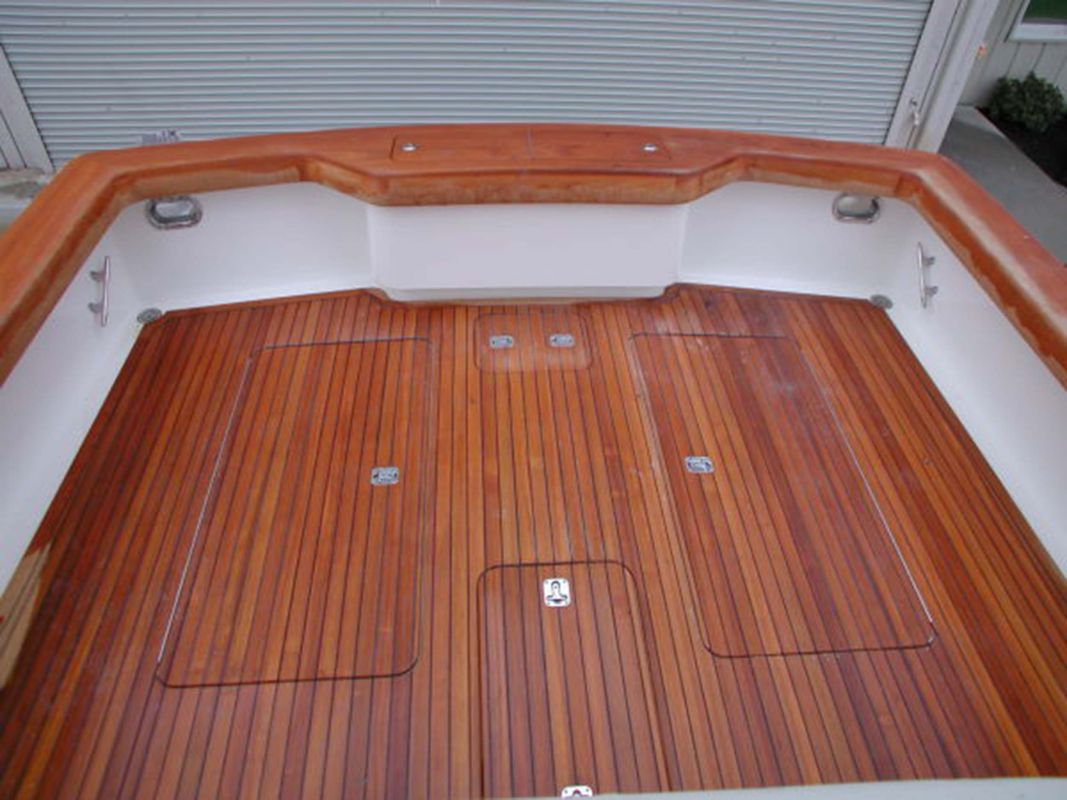

  • Teak cockpit
  • Teak covering boards and coaming boards
  • Teak toe rail
  • Transom fish/bait box w/ livewell
  • Trolling valves
  • Upgrade genera

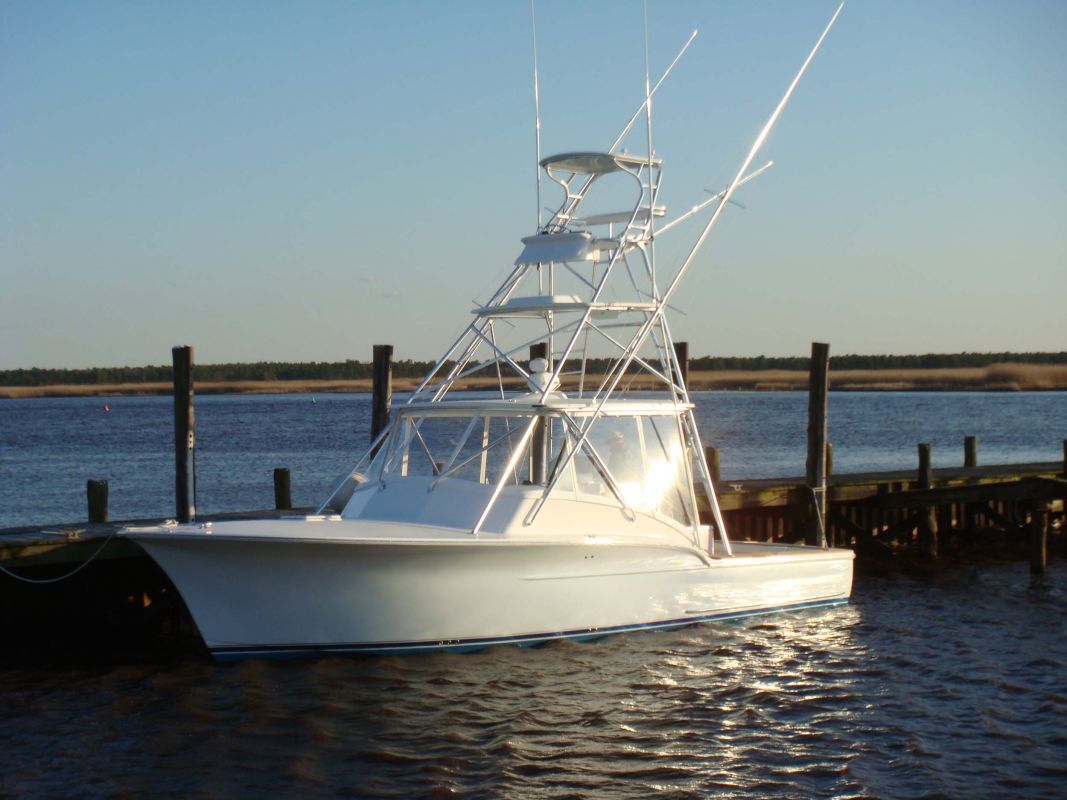

Tournament Package

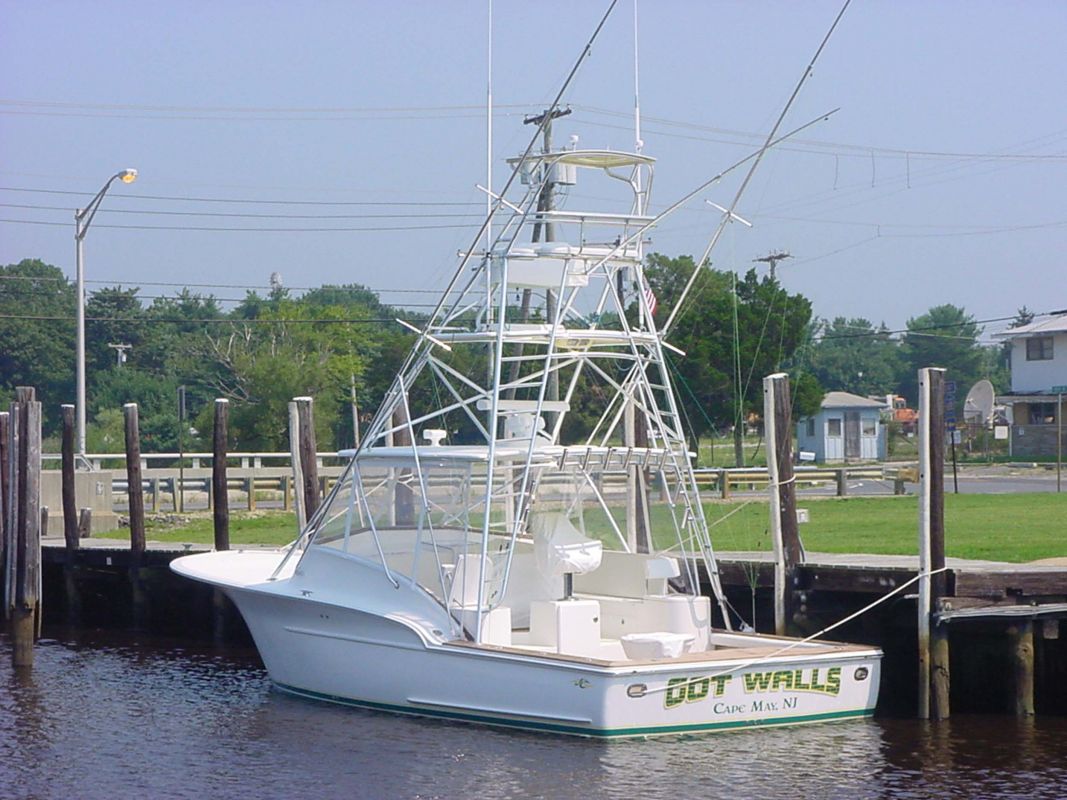

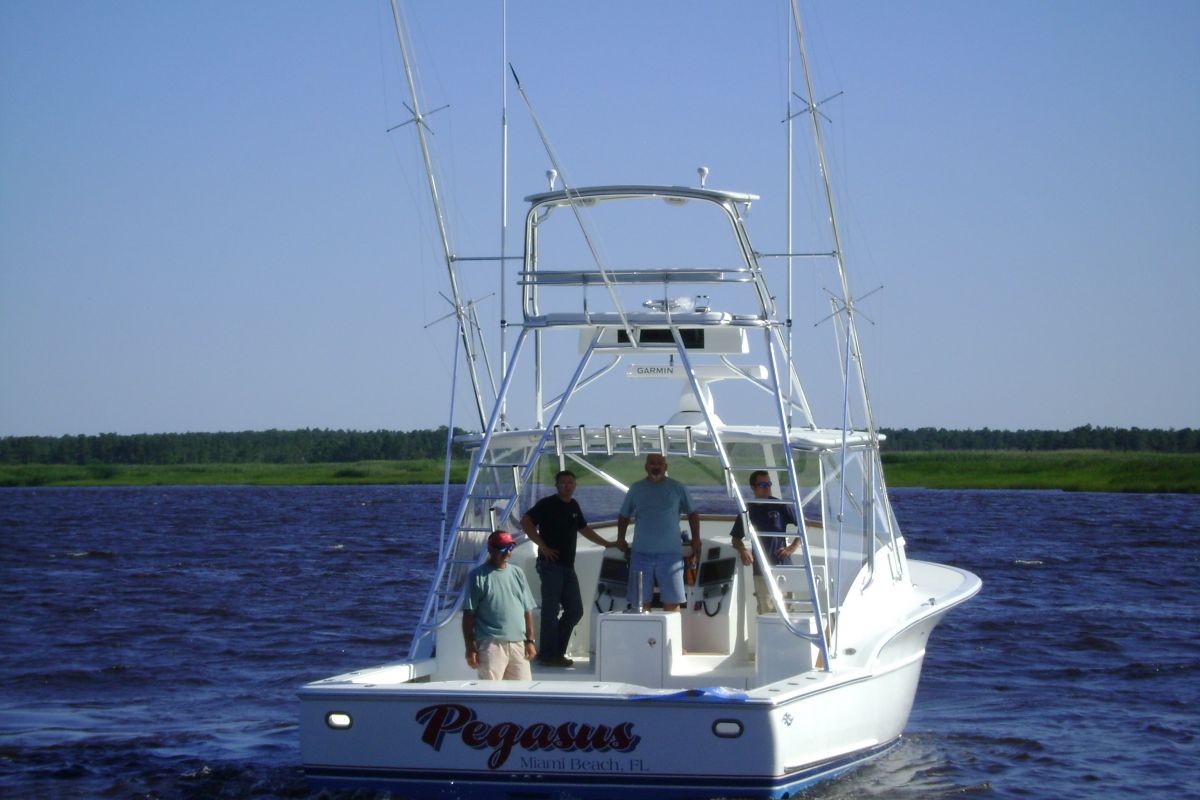

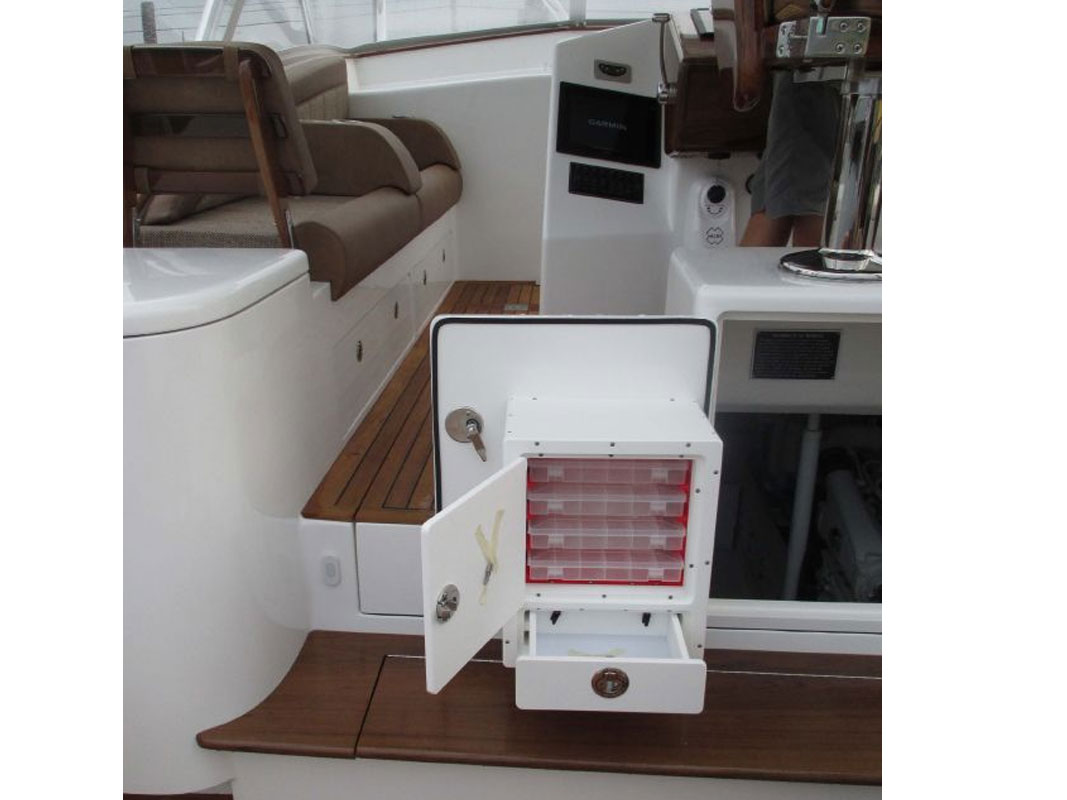

Custom Tuna tower with hard top, molded standing platform and sunshade, outriggers/center rigger rod holders on tower (6), Costa 3 sided enclosure tackle storage drawer, Release helm chair.

Due to our continual effort to improve our product, Jersey Cape reserves the right to change standard or optional equipment and pricing at anytime with out notice. Some features and items shown in photographs and illustrations are optional. Speeds, weights and measures may vary with conditions and options.
