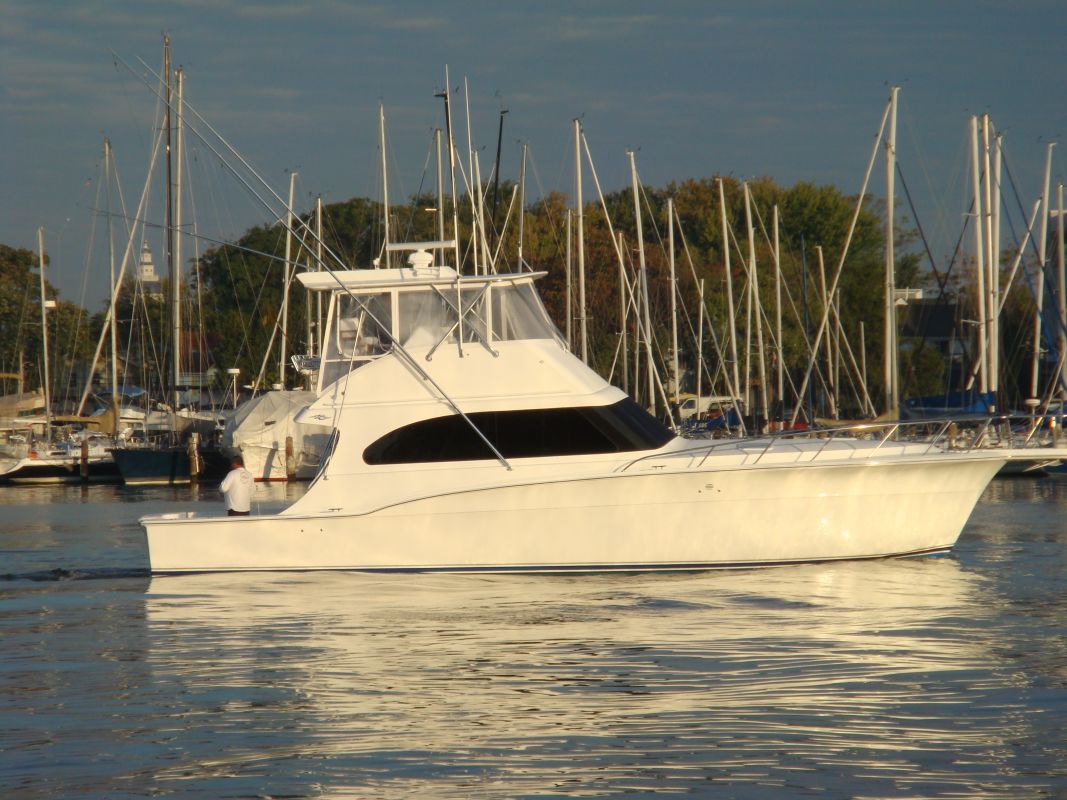

48' Sport Yacht

Specifications

LOA (Length Overall)
48' 5"
LOA (including pulpit)
51' 11"
Beam
16' 1"
Draft
3' 8"
Dead rise (transom)
12 °
Clearance (hardtop)
16' 9"
Fuel Capacity
850 gal
Water Capacity
200 gal
Displacement (Wet)
48,500 lb
Cockpit (total area)
163 sq ft

Standard Equipment

Construction

  • Anchor, anchor chair (8 ft.) anchor line (300 ft.)
  • Anti-fouling bottom paint
  • Awlgrip engine room with dry-deck flooring
  • Encapsulated Steel Engine mounting
  • Hand Laid, molded fiberglass hull, deck, deckhouse and flybridge featuring vinyl-
    ester resin
  • Integral bow pulpit
  • Solid Fiberglass Hull Bottom
  • Stainless steel cleats– bow, spring, and stern

Mechanical

  • Acoustical and thermal insulation
  • Air Conditioning– Reverse cycle
  • Auto/Manual fire extinguishing system
  • Bilge pumps w/ high water alarm (3)
  • Engine blowers (2)
  • Diesel Engines (fresh water cooled)
  • Dockside water with pressure valve
  • Dripless rudder ports, built into hull
  • Dripless shaft logs
  • Electronic clutch and throttle controls
  • Engine synchronizer
  • Exhaust mufflers - Engines and generator
  • External sea water strainers
  • Freshwater spigot in engine room
  • Fuel lines - Flexible aircraft type
  • Fuel tanks - Welded aluminum
  • Fuel filters - Engines and generator
  • Fuel transfer pump
  • Generator - 13KW (fresh water cooled)
  • Holding tank w/ dockside Pumpout/overboard diverter valve
  • Hydraulic steering
  • Oil change system - Engines and generator
  • Propellers - High performance
  • Propellers shafts
  • Rudders
  • Struts (Manganese Bronze dripless)
  • Trim tabs (recessed)
  • Water heater (20 gal.)
  • Water system, Heavy duty, pressurized

Electrical

  • AC/DC Distribution Panel w/ 120/240V AC
  • 12/24V DC magnetic breakers, integral
  • Generator controls; AC & DC voltmeter and high bilge indicator indicator lights
  • Generator hour meter
  • Anchor/mast light
  • Batteries - Heavy duty w/ fiberglass box
  • Battery charger
  • Battery disconnect switches
  • Battery paralleling
  • Cablemaster with 50’ cord
  • Central vacuum system
  • Color coded harnessed wiring system
  • Dyno-plate, grounded
  • Engine room lighting (DC and 120VAC)
  • Flybridge DC distribution panel
  • Horns - dual
  • Internal bonding system

Cockpit

  • Bridge Ladder (aluminum w/ polymer treads)
  • Cockpit indirect lighting
  • Cockpit lights in overhang with wireless remote
  • Dockside TV and phone connections
  • Dockside water and electrical connections
  • Encapsulated aluminum plate for fighting chair
  • Engine room access
  • Fish box insulated with macerator
  • Handrails, aluminum
  • Live Baitwell with re-circulation pump
  • Rod holders (4), flush mount
  • Tackle center w/ sink, storage and refrigeration
  • Transom door and gate
  • Wash downs, salt and freshwater

Flybridge

  • Compass
  • Console locker
  • Fuel Gauges
  • Full lighted instrumentation
  • Helm and Companion pedestal seats
  • Keyless ignition switches
  • Lounge seats with storage
  • Navigation lights
  • Refrigeration box
  • Safety rails (aluminum aft rail)
  • Stereo speakers
  • Watertight receptacles (DC and 120VAC)

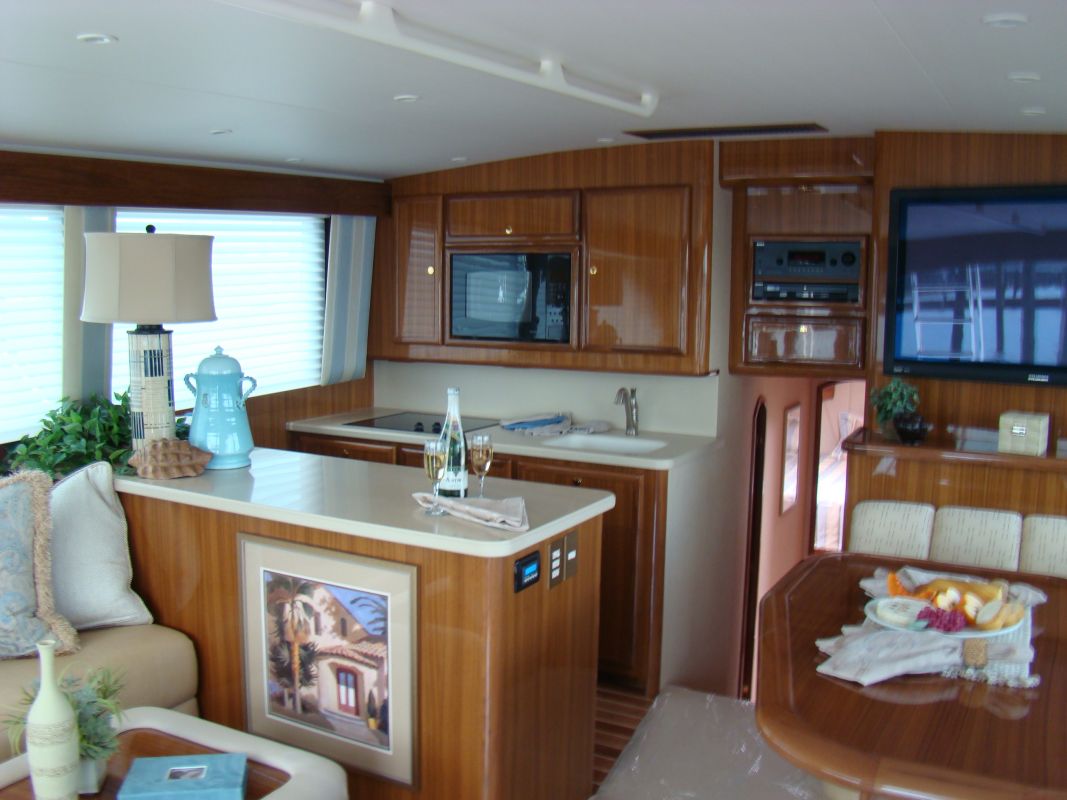

Salon

  • Bottle storage cabinet
  • Carpeting throughout
  • Cabinet with bottle storage and icemaker
  • Chair
  • Designer fabrics and window treatments
  • Dinette with storage
  • Entertainment center with TV and stereo system
  • CD/DVD player, speakers and FM antenna
  • Lighting, overhead and indirect
  • L-shaped sofa with rod storage
  • Sea rails, overhead
  • Telephone outlet

Galley

  • Custom flooring
  • Designer counter tops, sink and faucet
  • Electric ceramic burner stove
  • Exhaust fan
  • Lighting, overhead and indirect
  • Microwave/convection oven
  • Refrigerator and freezer

Master Stateroom

  • Carpeting throughout
  • Cedar lined lockers with light
  • Center queen berth with designer bedspread, shams, and padded headboard and pillows
  • Full length mirror
  • Lighting, overhead and indirect
  • Night tables with reading lamps
  • Overhead hatch with shade and screen
  • Overhead storage cabinetry
  • Telephone jack
  • Television, flat screen
  • Under berth storage

Port Guest Stateroom

  • Carpeting throughout
  • Full length mirror
  • Hanging locker, cedar lined with light
  • Lighting, overhead
  • Side by side berths with designer bedspreads and pillow shams
  • Stowage drawers

Starboard Guest Stateroom

  • Carpeting throughout
  • Full length mirror
  • Hanging locker, cedar lined with light
  • Lighting, overhead and reading
  • Upper/lower berths with designer bedspreads and pillow shams
  • Stowage drawers
  • Washer/dryer

Master and Guest Heads

  • Custom flooring,
  • Designer counters/sinks and faucets
  • Duplex outlets (120VAC-GFI) Electric heads
  • Enclosed showers with automatic sump pumps
  • Exhaust fans
  • Lighting
  • Linen Storage
  • Medicine cabinet with mirror
  • Overhead hatch with shade and screen

48' Sport Yacht Options

Engines

  • MTU Series 60 (835 hp)
  • CAT C-18 (1015 hp) Other engine packages upon request

Cockpit

  • Cockpit coaming padding
  • Cockpit controls
  • Cockpit speakers, from salon stereo
  • Custom fiberglass stairway to bridge
  • Icemaker for fishbox
  • Swim Platform (fiberglass)
  • Transom lettering

Deck / Exterior

  • Windlass (w/capstan and SS chain guard)
  • Custom hull color
  • Freshwater washdown on forward deck
  • Davit (1000 lb. Nautical Structures)
  • Install customer supplied tender and chocks
  • Bow thruster

Fishing

  • Rupp Outriggers, 33’
  • Rupp Center Rigger

Salon / Interior

  • Canvas carpet cover, full salon
  • Canvas carpet cover, companionway only
  • Custom home theater package
  • Custom interior woods and finishes
  • Decorator accessory package
  • Teak valances
  • Wine refrigerator IPO standard ice maker

Galley / Heads

  • Granite counter tops, galley & heads

Flybridge

  • 3-sided enclosure with u-zips and vents
  • 3-sided enclosure with EZ2CY front panels
  • Aft enclosure with u-zips
  • Air Conditioning, reverse cycle
  • Fiberglass hardtop (with lighting, electronics and teaser box, spreader lights, and 6 rocket launchers)
  • Hardtop hatch
  • Power steering
  • Teak helm pod with single lever controls
  • Tournament series teak helm/companion chairs

Staterooms

  • Stereo/CD Player, 12V
  • TV/DVD player, flat screen
  • Telephone outlet, additional
  • Electrical outlet, additional

Engine Room

  • 12V fresh water pump (backup to std. 110V pump)
  • Air circulation fans (2)
  • Auxiliary 10kw generator
  • Emergency bilge y-valve pump out
  • Fuel priming pump 24V
  • Spare propellers
  • Voltage stabilizer transformer

Tournament Package

Half-tower with three sided enclosure, single lever controls, outriggers, Tournament helm chairs, rod holders (2) added to each cockpit wind, windlass, emergency Y-valves, power steering, full salon carpet runner,

Due to our continual effort to improve our product, Jersey Cape reserves the right to change standard or optional equipment and pricing at anytime with out notice. Some features and items shown in photographs and illustrations are optional. Speeds, weights and measures may vary with conditions and options.
